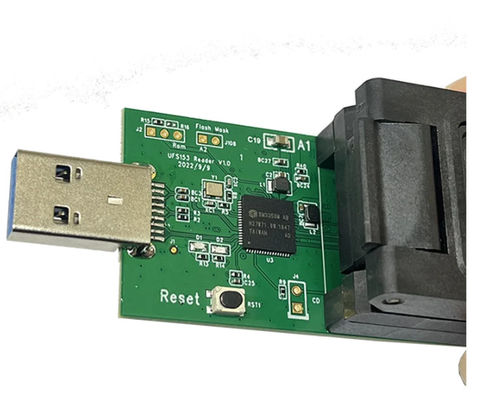

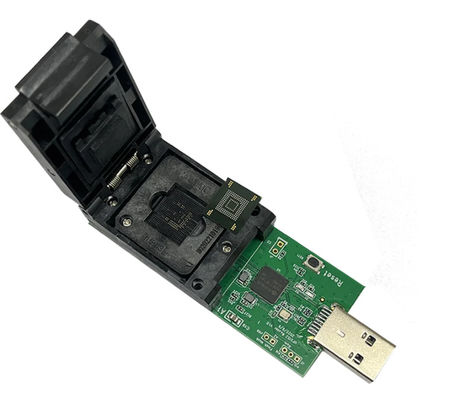

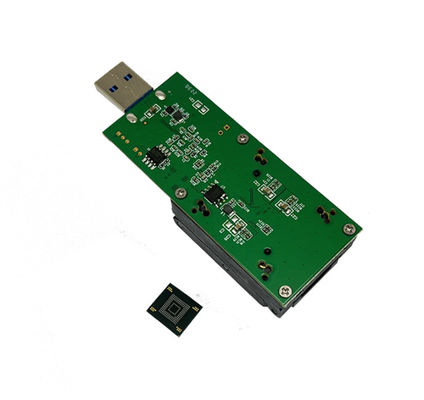

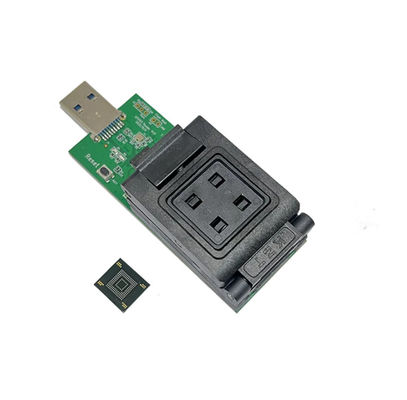

UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector

UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector
UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector

Large Image :  UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector

Product Details:
Place of Origin: china
Model Number: UFS153 TO USB3.0
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: ＄153/pcs（Free shipping - regular logistics）
Packaging Details: 13*8*9 cm
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 3-5 work days
Contact Now

UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector

Description
Pin Count: 66pin Pin Pitch: 0.5MM
Applicable IC Body Size: 11.5*13MM Service Life: 15000 Times
Main Control Chip: SM3350

Specifications:

Part number:UFS153 TO USB3.0
IC Package:UFS153
Pin Pitch:0.5mm
Pin Count:66pins
IC Size:11.5*13mm
Main control chip:SM3350

Material & Performance:socket Body: PEI

Contacts:Beryllium Copper Alloy

Contact Plating:Gold over Nickel

Operation Force:2.0KG min, the more PINs the greater force.

Contact Resistance:50m max

Dielectric:700V AC for 1 minute

Insulation Resistance:1,000M 700V DC

Life Span 1500Times (Mechanical)

UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector 0UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector 1UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector 2UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector 3UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector 4UFS153 TO USB3.0 Adaptateur De Programmeur 0.5mm IC PIN PITCH Prise Size 11.5*13mm IC Connector 5
