Product Details:
|
| Type: | BGA254 To SD Interface Socket | Apply To EMMC Size: | 11.5x13mm |
|---|---|---|---|
| Pin Pitch: | 0.5mm | Structure: | Clamshell |
| Pin Count: | 33 |

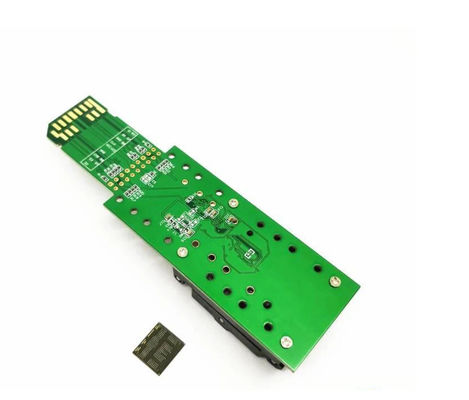

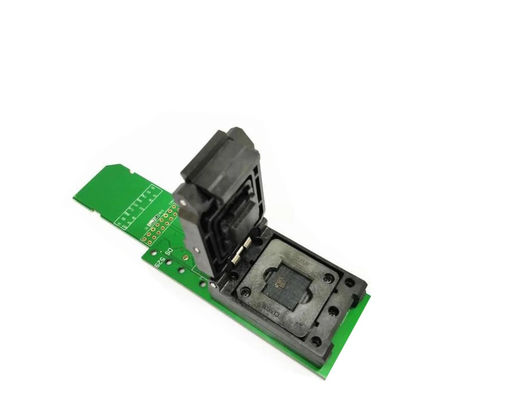

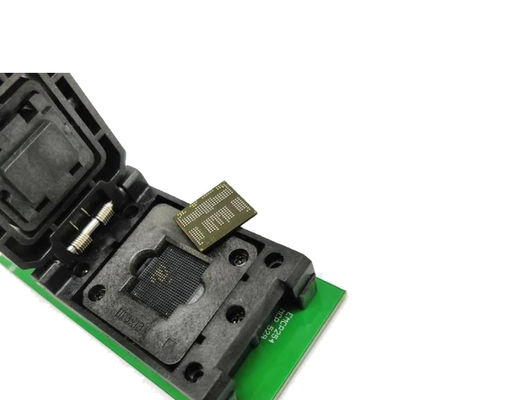

eMMC socket eMMC254 EMCP254 BGA254 chip Reader Clamshell Structure Chip socket data recovery date backup Android repair
BGA169/BGA153 programming adapter is an easy use tool to connect chip and PC. Just like a U disk !
(need you to prepare SD_card_Reader in order to connect to the PC by USB)
Includes size limiter: 11.5x13mm
WARM PROMPT : This is the latest model ( black pcb , the old version : green pcb ) our company recently launched , the socket had increased a power led , easy to position and operate .
there are also provide ODM and OEM ,if you are have any queation please don't hesitate contact with us .
1. Apply to eMMC of Samsung, Sandis k, Toshiba, Hynix, Micron, HTC and Intel.2. Apply to BGA254 and eMCP254.3. eMMC size of this product is 14x18mm , we also provide size 11.5x13mm , 12x16mm , 12x18mm , please see more products in our store .4. Apply to eMMC thickness of 0.8 to 1.5mm.5. With 30 pins and pin pitch 0.5mm.6. Life cycle is around 25000 times.7. eMMC data can be easily read and re-written.8. Test can be done with or without solder ball.9. Easy positioning and operation.
We provide one frame guide for each fixture , If you need more, please pay another $10 for per standard size plate.
Applicable borders limiter / frame guider link as below :
