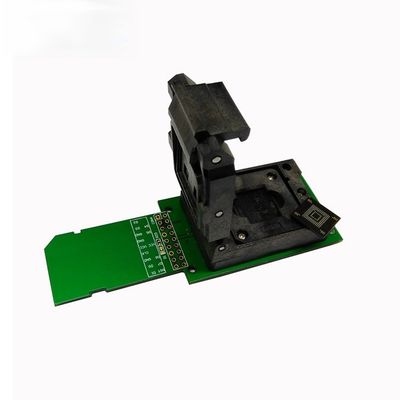

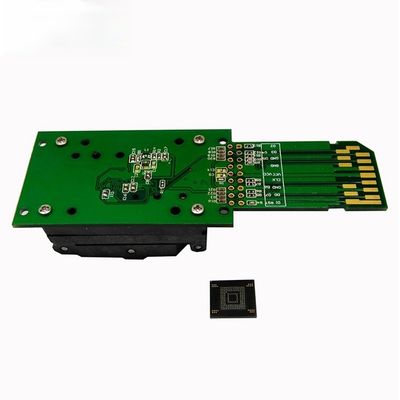

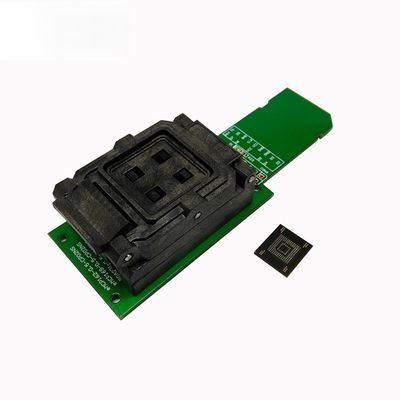

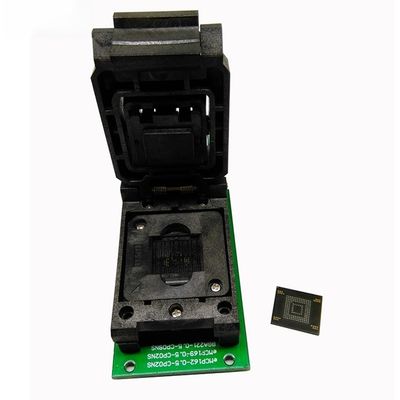

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android
eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android

Large Image :  eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android

Product Details:
Place of Origin: china
Model Number: emmc 153/196 to sd
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $113.6/pcs
Packaging Details: 13*8*9 cm
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 3-5 work days
Contact Now

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android

Description
Type: EMMC153/169 To SD Interface Socket Function: EMMC Reader
Apply To EMMC Size: 11.5x13mm Apply To EMMC Thickness: 0.8mm To 1.5mm
Pin: 30 Pin Pitch: 0.5mm
Structure: Clamshell

BGA169/BGA153 programming adapter is an easy use tool to connect chip and PC. Just like a U disk !

(need you to prepare SD_card_Reader in order to connect to the PC)

Includes size limiter: 11.5x13mm ( buy eMMC153/169 test socket , get 1 piece complimentary frame guides )

Pay attention to

PCB Board, Color Random Delivery

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 0

1. Apply to eMMC of Samsung, Sandisk, Toshiba, Hynix, Micron, HTC and Intel. 2. Apply to BGA153 and BGA169. 3.eMMC size of this product is 11.5x13mm , we also provide size 12x16mm , 12x18mm , 14x18mm , please see more products in our store . 4. Apply to eMMC thickness of 0.8 to 1.5mm. 5. With 30 pins and pin pitch 0.5mm. 6. Life cycle is around 25000 times. 7. eMMC data can be easily read and re-written. 8. Test can be done with or without solder ball. 9. Easy positioning and operation.

eMMC  reader

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 1

We provide one frame guide for each fixture , If you need more, please pay another $10 for per standard size plate.

Applicable borders limiter / frame guider link as below :

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 2

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 3eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 4eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 5eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 6

We're the original manufacturer , we can offer the lowest competitive prices , The shortest processing time guaranteed!!! If you have any questions or concerns , you're welcome to contact us freely ! !

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 7

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 8

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 9

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 10eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 9eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 12eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 13eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 14eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 15

eMMC Socket eMMC153 eMMC169 Chip Reader Clamshell Structure BGA153 BGA169 Chip Socket Data Recovery Date Backup Android 16
