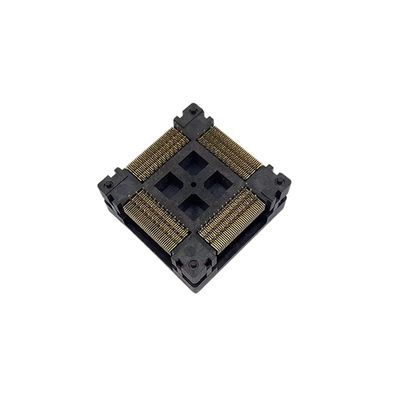

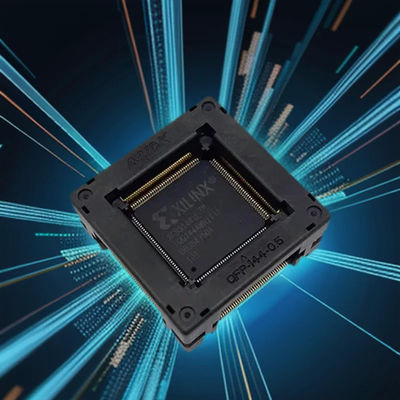

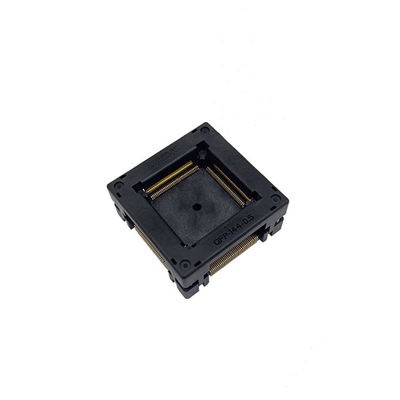

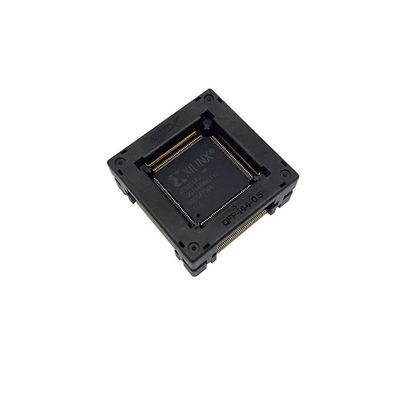

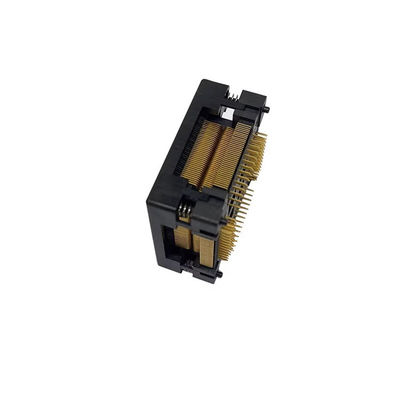

Product Details:
|
| Type1: | Test & Burn In SockAet ( Without Pcb ) | Pin Pitch: | 0.5mm |
|---|---|---|---|
| Pin Count: | 144pins | Applicable IC Body Size: | 20X20mm |
| Chip Size: | 22X22mm | Contact Resistance: | 50-100mΩ Max |
| Max Current Capacity: | 1A/pin | Life Span: | 10,000 Times |
| Temperature Range: | -40℃ TO 125℃ | Purpose: | Chip Detection/Aging Test/Chip Programming Socket/Chip Data Recovery Test Stand |
Feature :
* 100% brand new , high Quality and duarable
* Tested before shipping
* Technical support and datasheet are available if you need .
* we are the original manufacturer and welcome anyone to be our distribution agents
* Professional manufacturer in all kinds of IC chip testing sockets and adapters.
Product Feature :
1. Use double contact technology , contact more stable .
2. The socket shell use special engineering plastic , high strength , long mechanical life .
3. The shapnel use import beryllium copper , small impedance , good flexibility .
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper( Be Cu )Gold plating Over Nickel plating
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : 700V AC at 1 min
c) Contact resistance : 100 MAX.
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 10000Times
C)Temperature: -45~+125
Specification and Dimension :
* Type : Test & Programming Socket ( with pcb )
* Package : QFP144-0.5
* Pinpitch : 0.5mm
* Pin Count : 144pins
*Chip size:20*20(22*22)mm
*PurposeChip detection/Aging test/Chip programming socket/Chip data recovery test stand/Chip adapter/Burn-in socket/Burning socket/Programmer Adapter Socket/IC Connector/Adaptateur de programmeur
