Product Details:
|
| 48: | 0.5mm | Type: | QFP48 Programmer Socket |
|---|---|---|---|
| QFP48 Programmer Socket: | 48 | Structure: | Open Top |
Product features:
Ø Open-top structure burn in socket
Ø Accommodates pitch :0.5 mm
Ø Compact size and low Acctuation Force
Material & Performance:
Ø QFP programming socket
Ø Socket Body: PEI
Ø Contacts:Beryllium Copper Alloy
Ø Contact Plating:Gold over Nickel
Ø Operation Force:2.0KG min, the more PINs the greater force.
Ø Contact Resistance:50mΩ max
Ø Dielectric:700V AC for 1 minute
Ø Insulation Resistance:1,000MΩ500V DC
Ø Max Current Capacity : 2A
Ø Temperature Rating:-55℃~+175 ℃
Ø Life Span 15,000 Times (Mechanical)

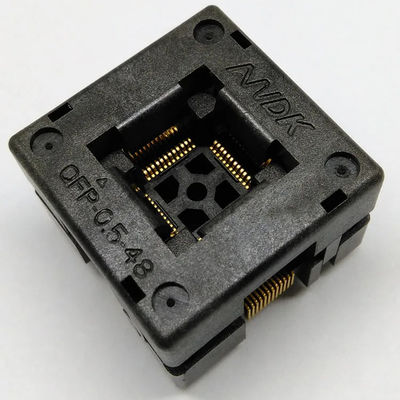

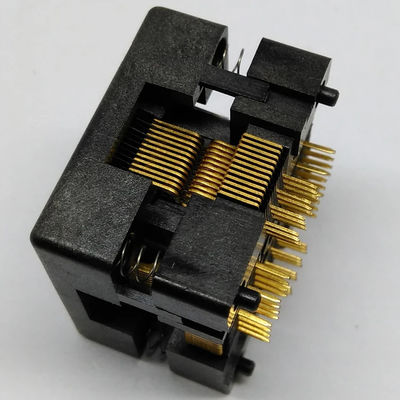

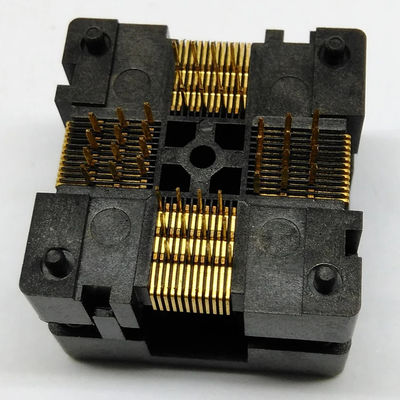

QFP48 TQFP48 LQFP48 Open top Pitch 0.5mm Programmer Socket FPQ-48-0.5-06 Test Flash Adapter Conversion Block
Introduction :
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP48/TQFP48/LQFP48
2. Applicable Package : QFP48 , TQFP48 , LQFP48 , pin pitch 0.5mm
a) Type : QFP48-0.5-CP01N
b) Pin pitch : 0.5 mm
c) Pin Count : 48
d) Applicable IC Body Dimension : 7*7 mm ( including pin dimension : 9*9 mm)
We\'re the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .
