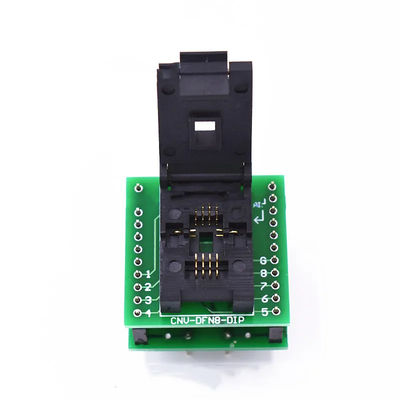

Product Details:
|
| Type: | Test & Programming Socket ( With Pcb POGO PIN ) | Pin: | 8 Pins |
|---|---|---|---|

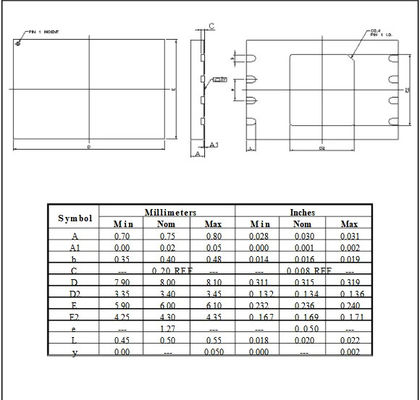

| Pin Pitch: | 1.27mm | Applicable Chip Size: | 6*8 Mm |
| Structure: | Clamshell Structure | Package: | QFN DFN8 WSON MLP |
Product Features:

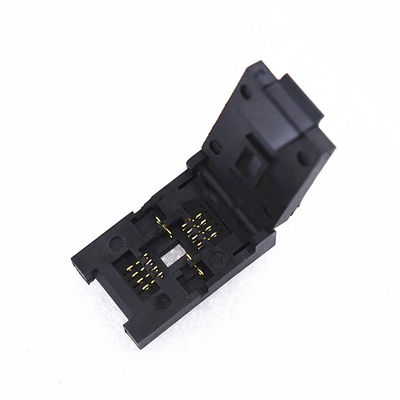

a.Clamshell structure socket
b.Adopting engineering material for socket structure,
Strength is high ,lifetime is long
c.Adopting import BeCu material for socket contact
Spring ,thickening gold-plating surface ,impedance is small elasticity is good
d.For 1.27mm pitch package
Material & Performance:
Ø socket Body: PEI
Ø Contacts:Beryllium Copper Alloy
Ø Contact Plating:Gold over Nickel
Ø Operation Force:2.0KG min, the more PINs the greater force
Ø Contact Resistance:50mΩ max
Ø Dielectric:700V AC for 1 minute
Ø Insulation Resistance:1,000MΩ500V DC
Ø Max Current Capacity : 1A
Ø Temperature Rating:-55℃~+175 ℃
Ø Life Span 15,000 Times (Mechanical)
