Product Details:
|
| Number Of Pins: | 32 | Type: | QFP |
|---|---|---|---|
| Current Rating: | 1A/pin | Pitch: | 0.35/0.4/0.5mm |
| Operating Temperature: | -45°C To +125°C | Life Span: | 15,000 Times |
| Structure: | Open Top |
Product Introduction
A. Product Usage: Lead out chip pins for easy aging testing, programming, and data recovery of chips.
B. Features: U-shaped structure, more stable contact, and long service life. Mechanical life: 30000-50000 cycles
C. Working temperature: -55 ℃~155 ℃ Current: maximum 1A
D. We are a factory that can provide test seat drawings (PDF)
Specifications and dimensions
A. Model: QFN-32-0.4/0.5
B. Pin spacing (mm): 0.4/0.5MM
C. Number of PINs: 32
D. Chip size: 4 * 4mm/5*5mm/6*6mm
E. There are different arrangements for chip pins Please leave a message and let us know which one you need

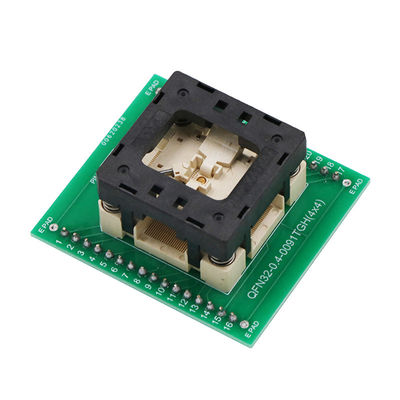

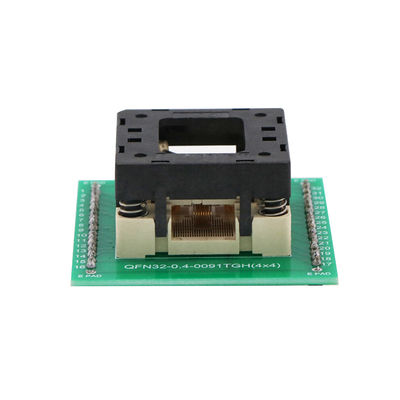

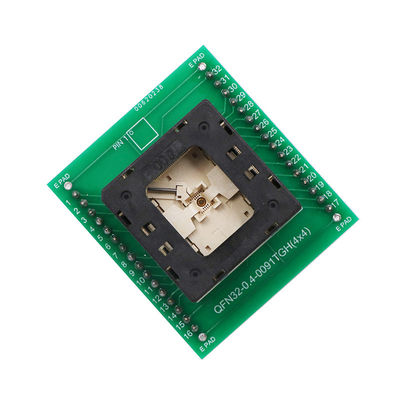

1.QFN32-0.4-0092TGH(4x4)
2.QFN32-0.4-0092TGH(5x5)
3.QFN32-0.5-0092TGH(5x5)
4.QFN32-0.5-0092TGH(6x6)
