Product Details:
|
| Operating Temperature: | -45°C To +125°C | Package Type 1: | Test & Burn In Socket ( Without Pcb ) |
|---|---|---|---|
| Current Rating: | 1A | Contact Resistance: | 50mΩ |
| Life Span: | 10,000 Times | Pitch: | 0.8mm, |

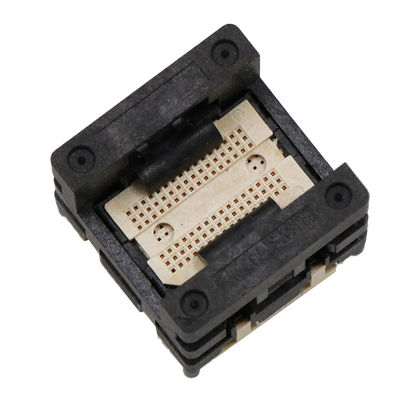

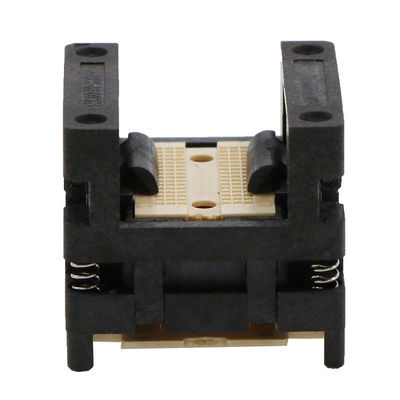

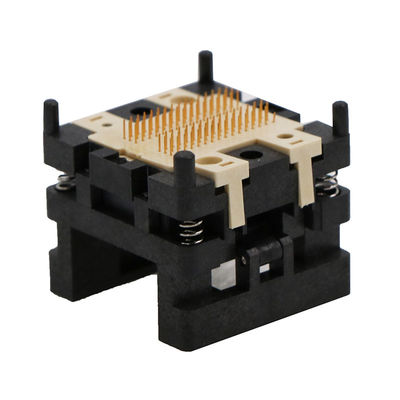

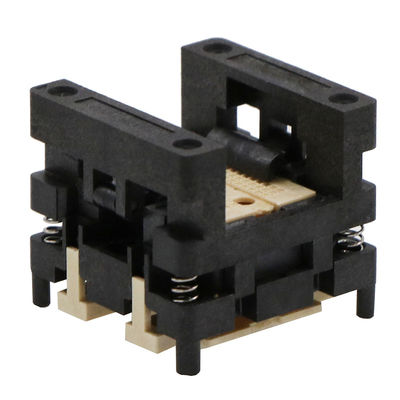

Product Introduction
A. Product use: Programming and testing stands, aging and testing of BGA96 IC chips
B. Applicable packaging: BGA96 pin spacing 0.8mm
C. Test seat: BGA96-0.8
D. Features: Adopting C-shaped needles for more stable contact and long service life
E. Working temperature: -55 ℃~150 ℃ Current: 1A max
F. Our company can provide specifications (layout drawings), PDF files CAD
Specifications and dimensions
A. Model: BG96-0.8
B. Pin spacing (mm): 0.8
C. Foot position: 96
D. Chip size: 13 * 7.5mm
